【產品名稱】短波紫外光清洗設備

【產品型號】JYMX

【關 鍵 字】紫外光清洗設備,短波長紫外線,UV表面清洗,材料表面改性,UV氧化反應

【產品類別】UV光清洗器

【技術原理】使用短波長紫外線UV表面清洗、表面改性技術，用清潔高能紫外線光源，對材料進行處理后可得到極其清潔的表面和強力的表面接著性。

【產品特點】

1.大氣中處理，簡單、方便、環保，無二次污染，無需加熱、藥液等處理。

2.清潔度極高，單分子層以下，可以得到從前的處理方法難以想象的接著性。

3.國內獨有超高出力短波長紫外線光源，僅需短時間（秒單位）照射，便能發揮強大的處理能力，顯著提高生產效率。

4.對絕大多數塑料成型品照射有效，適用性廣。

5.可避免大量消耗藥液、熱能等，運行成本低。

【應用范圍】

主要在液晶顯示器件、半導體硅晶片、集成電路、高精度印制電路板、光學器件、石英晶體、密封技術、帶氧化膜的金屬材料等生產過程中采用光清洗方法最為合適。

主要材料：ITO玻璃、光學玻璃、鉻板、掩膜板、拋光石英晶體、硅晶片和 帶有氧化膜的金屬等進行精密清洗處理。

可以去除污垢：有機性污垢、人體皮脂、化妝品油脂、樹脂添加劑及聚酰亞胺、石蠟、松香、潤滑油、殘余的光刻膠等。

此UV光源在LCD工藝中又具有UV改質(紫外光表面質變)的特點，目前在液晶顯示器STN的生產過程中，主要是用在膜處理技術上，對于改善膜與膜之間的密接是非常有效的，如ITO膜與感光膠膜層，TOP涂層與PI涂層等等。另在研究部門又可用來UV改性塑料材料產品，用于納米技術研究，產品經此UV光照射發生化學反應，使產品表面性質改變。

【綜合介紹】

一般工業或高科技領域使用的一些材料具有非常高的性能，對環境也非常友好，但這些材料的接著性、印涂性等一般都非常差。本公司提供的短波長紫外線（UV）表面清洗、表面改性技術，用清潔的高能紫外線光源，對上述材料進行處理后可得到極其清潔的表面和強力的表面接著性。

改性的基本的反應就是UV引起的氧化反應。UV照射固體表面后，表面的污染物被氧化，而后被分解成CO2和H2O等易揮發性物質，最終揮發消失。并且表面形成有利表面接著的如OH，COO，CO，COOH等親水性原子團，被改性的表面接著性得到飛躍性地提高。

UV光源技術的進步保證了UV/O3表面改性技術充分發揮其突出的優越性。UV/O3表面改性技術因能處理得到極高的清潔度與表面接著性，在固體表面處理中越來越得到廣泛的應用。

【使用說明】

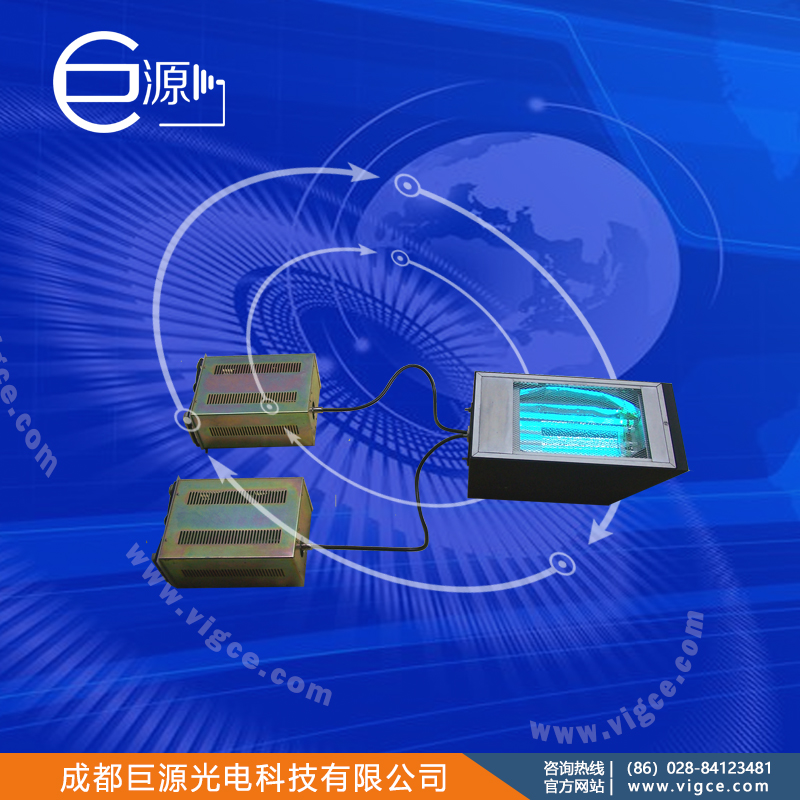

【產品照片】

【視頻資料】

【同系產品】

【規格參數】

[product name] short wave ultraviolet light cleaning equipment
[product model] JYMX
Ultraviolet light cleaning equipment, short wave long ultraviolet, UV surface cleaning, material surface modification, UV oxidation reaction
[product category] UV light cleaner
[technology principle] using short wavelength ultraviolet UV surface cleaning and surface modification technology, using clean high-energy ultraviolet light source to process materials, we can get extremely clean surface and strong surface continuity.
[product characteristics]
1. treatment in the atmosphere, simple, convenient, environmental protection, no two pollution, no heating, liquid and other treatment.
2. the cleanliness is very high and the single molecular layer is below, and the unimaginable continuity of the previous treatment can be obtained.
3., China's unique ultra high output, short wavelength ultraviolet light source, only needs a short time (seconds unit) to irradiate, can play a powerful processing capacity, significantly improve production efficiency.
4. is effective for most plastic molding products, and it is widely applicable.
5. can avoid a large amount of consumption of liquid, heat and so on, low operating cost.
[application range]
Mainly in liquid crystal display devices, semiconductor silicon wafers, integrated circuits, high-precision printed circuit boards, optical devices, quartz crystal, sealing technology, metal materials with oxide film and other production processes, the most suitable method is optical cleaning.
The main materials are ITO glass, optical glass, chromium plate, mask, polished quartz crystal, silicon wafer and metal with oxide film for precise cleaning.
It can remove dirt: organic dirt, human sebum, cosmetic oil, resin additives and polyimide, paraffin, rosin, lubricating oil, residual photoresist and so on.
The UV light source has UV modification in the LCD process (UV surface characteristics, the qualitative change) in the production process of liquid crystal display STN, is mainly used in film processing technology, is very effective for improving membrane and membrane contact, such as ITO film and photosensitive adhesive coating, TOP coating and PI coating and so on. In addition, the research department can also be used for UV modified plastic products, for nano technology research. Products are irradiated by UV light to produce chemical reactions, so that the surface properties of products are changed.
[comprehensive introduction]
Some materials used in general industrial or hi-tech fields have very high performance and are also very friendly to the environment, but these materials are usually very poor. The short wavelength ultraviolet (UV) surface cleaning and surface modification technology provided by our company is processed with clean high-energy ultraviolet light source. After that, we can get extremely clean surface and strong surface continuity.
The basic reaction of modification is the oxidation reaction caused by UV. After UV is irradiated on the surface of the solid, the pollutants on the surface are oxidized and then decomposed into volatile substances such as CO2 and H2O, which eventually evaporate. And the surface formed a favorable surface followed by a hydrophilic group such as OH, COO, CO, COOH and other hydrophilic groups, and the modified surface continuity was greatly improved.
The progress of the UV light source technology ensures the UV/O3 surface modification technology to give full play to its outstanding superiority. UV/O3 surface modification technology is becoming more and more widely used in solid surface treatment because of its high cleanliness and surface continuity.
[instructions]
[product photo]
[video data]
[homologous products]
[specification parameter]
.
