【產品名稱】固定燈管微波無極紫外光泵

【產品型號】JYM+

【關 鍵 字】微波無極紫外燈系統,固定燈管微波無極光泵

【產品類別】UV光泵

【技術原理】微波無極紫外燈系統

基于微波無極紫外燈系統設計研發，通過微波、紫外線和臭氧三位一體作用于處理物質，利用UV光解、光催化、光氧化、光解VOCS和干擾細胞合成等方式，達到消毒殺菌和加快有機物分解，用于各種有毒、異味、惡臭、污染等氣體、液體的凈化處理。

1.微波：可使細胞中極性物質隨高頻微波場的震動受到干擾和阻礙, 引起微生物細胞的蛋白質、核酸等生物大分子受熱凝固或變性失活, 從而導致其突變或死亡。

2.紫外線：光譜為253.7nm的紫外線通過照射微生物的DNA，使其發生光化學反應，從而變性失活，是目前公認的最佳消毒光譜線。

3.臭氧( O3 )：微波激發光譜為185nm的射線與空氣中的氧氣反應生成的臭氧具有強氧化作用，是已知的最強氧化劑。對從烴到羧酸的種類眾多有機物都可分解，可有效地殺滅各種細菌病菌，臭氧的彌散性可彌補由于紫外線只沿直線傳播、消毒有死角的缺點。

【產品特點】

1.柔性防腐材料密封激勵器，防污防水；

2. 高頻微波破壞細胞，致使病院微生物突變死亡；

3. 253.7nm紫外線破壞微生物DNA，強效消毒滅菌；

4.臭氧（O3）作為強氧化劑，無死角殺菌細菌；

5.促使從烴到羧酸的種類眾多有機物都可分解，光解能力強；

【應用范圍】光清洗、印刷、材料表面改性、表面去油、輻照場合、廢水處理、廢氣處理

【綜合介紹】

固定燈管微波無極紫外光泵（JYM+）是基于I代電纜傳輸微波無極紫外光泵（JYM）系統設計開發。其燈管一頭加入了柔性防腐材料，能很好的連接經過特殊設計接口的激勵器，并與之固定使用。可使燈管與激勵器之間形成密封效果，防止廢氣、廢水進入激勵器內部。

【使用說明】

【產品照片】

【視頻資料】

【同系產品】【規格參數】見產品參數表

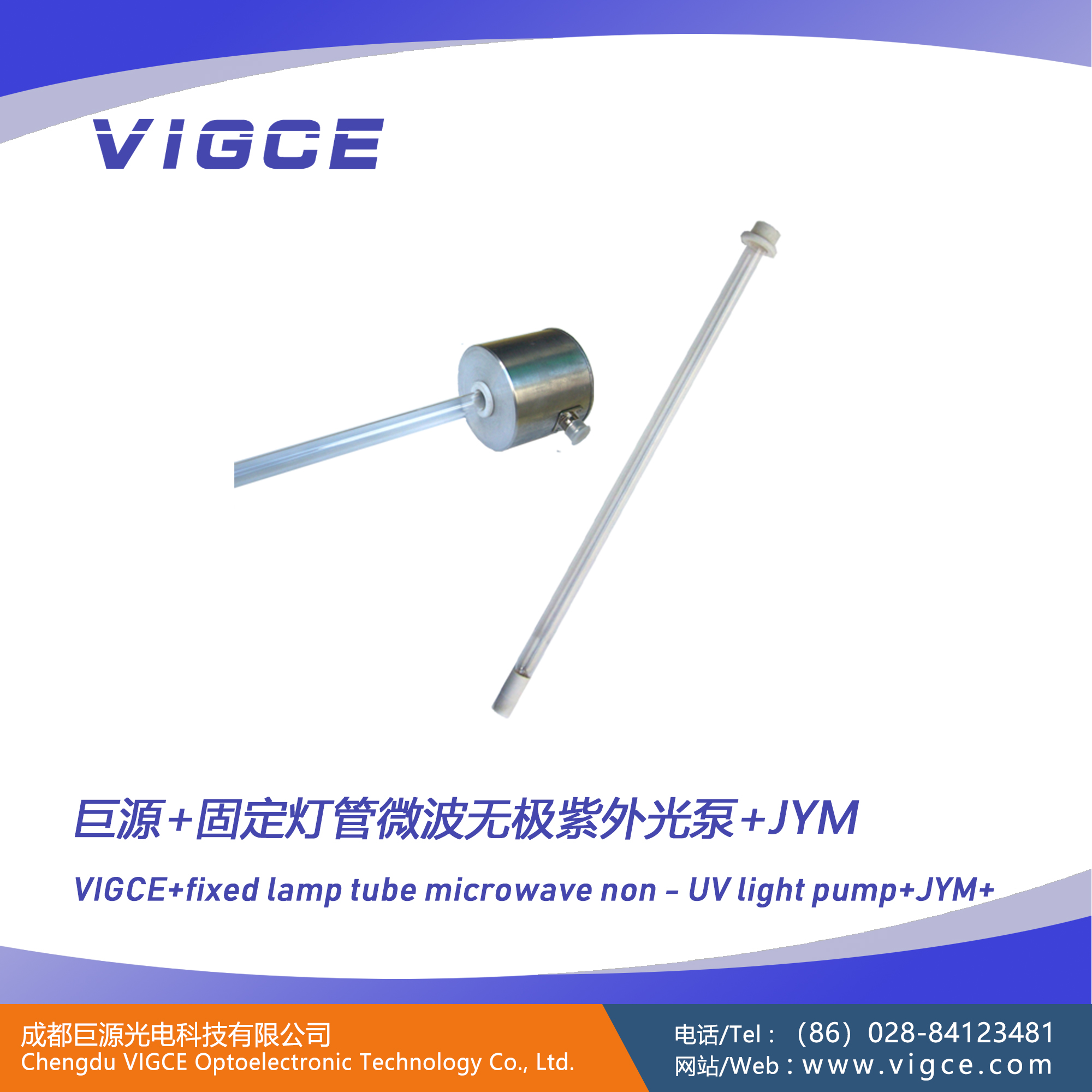

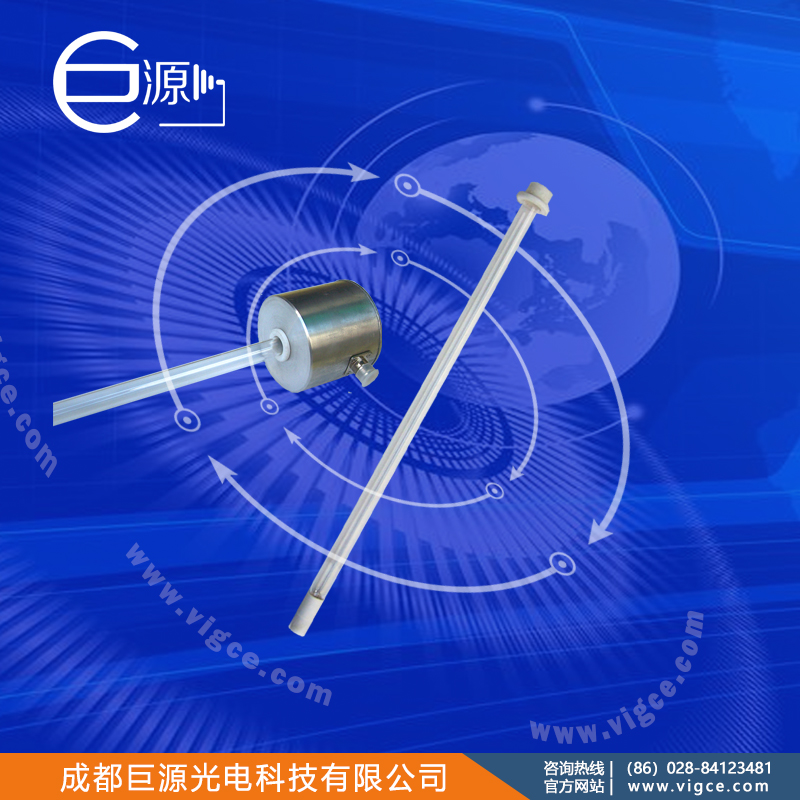

[product name] fixed lamp tube microwave non - ultraviolet light pump
[product model] JYM+
Microwave non polar ultraviolet lamp system, fixed lamp tube microwave non auroral pump
[product category] UV optical pump
Microwave non polar ultraviolet lamp system
Research and design of microwave electrodeless UV lamp system based on the microwave, UV and ozone three-in-one effect on processing material, the use of UV photolysis, photocatalysis and oxidation, photolysis and VOCS interference cell synthesis, achieve sterilization and accelerate the decomposition of organic matter, used for purifying various toxic odor, odor pollution, etc. gas and liquid.
1. microwave: the polar materials in the cell will be interfered with and obstructed by the vibration of the high-frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or denaturation, resulting in mutation or death.
2. ultraviolet: the ultraviolet spectrum of 253.7nm is the best disinfecting spectrum line by irradiating the DNA of microorganism to make photochemical reaction and deactivation.
3. ozone (O3): the microwave excitation spectrum is the strongest oxidant known for the strong oxidation of the ozone generated by the reaction of 185nm's rays with the oxygen in the air. From hydrocarbon to carboxylic acid, many organic substances can be decomposed, which can effectively kill all kinds of bacterial pathogens. The dispersion of ozone can make up for the shortcoming of ultraviolet rays spreading along the straight line and sterilizing dead ends.
[product characteristics]
1. flexible anticorrosion material sealing exciter, antifouling and waterproof;
2. high frequency microwave damage cells, resulting in the death of 3. Hospital of microbial mutation; 253.7nm UV damage microbial DNA, potent ozone disinfection and sterilization; 4. (O3) as a strong oxidant, no dead bacteria sterilization; 5. to carboxylic acid from the hydrocarbon to many types of organic compounds can be decomposed, photolysis ability;
Light cleaning, printing, surface modification of materials, surface deoiling, irradiation, waste water treatment and waste gas treatment
[comprehensive introduction]
The fixed lamp tube microwave non polar ultraviolet pump (JYM+) is based on the I generation cable transmission microwave non polar ultraviolet pump (JYM) system design and development. The lamp tube is added to the flexible anticorrosion material and can be used to connect the exciter with the special design interface. The sealing effect can be formed between the lamp tube and the exciter, so as to prevent the waste gas and waste water from entering the internal of the exciter.
[instructions]
[product photo]
[video data]
[homologous product] [specification parameter] see product parameter table
