【產品名稱】微波無極紫外UV光解廢水凈化器

【產品型號】JYM1000

【關 鍵 字】安全污水消毒,環境友好紫外線,自動清洗污水處理設備,污水處理廠除菌,中水回用消毒

【產品類別】廢水凈化器

【技術原理】

微波：可使細胞中極性物質隨高頻微波場的擺動受到干擾和阻礙, 引起微生物細胞的蛋白質、核酸等生物大分子受熱凝固或變性失活, 從而導致其突變或死亡。

紫外線：253.7nm紫外線通過照射微生物的DNA，使其發生光化學反應，從而變性失活，是目前公認的最佳消毒光譜線。

臭氧( O3 )：微波激發的射線與空氣中的氧氣反應生成的臭氧具有強氧化作用，有效地殺滅細菌，臭氧的彌散性可彌補紫外線只沿直線傳播、消毒有死角的缺點。

【產品特點】

1. 燈管壽命可長達十幾年，發出的光譜線253.7nm，是傳統紫外燈效率的20多倍；

5. 燈管可實現實時、自動清洗，無需人工維護；

7. 設備占地面積小，安裝方便，環境隨意；

8. 處理效率高，可實現幾倍于現有紫外燈設備的處理量；

9. 接口方便，操作友好。

【應用范圍】污水處理、廢水凈化

【綜合介紹】

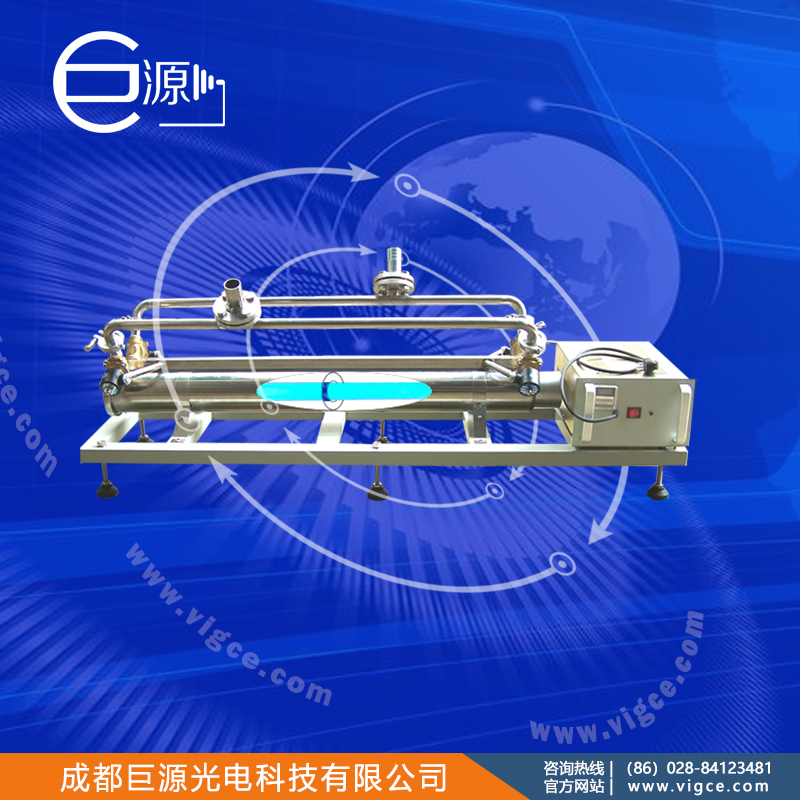

JYM1000微波無極紫外污水處理設備，安全污水消毒，不產生消毒副產物，環境友好，燈管壽命12年，253.7nm光譜線，20倍于普通紫外燈，燈管實時、自動清洗，無需人工維護，設備占地面積小，安裝方便，處理效率高。

提高了操作人員，社區和環境安全：

JYM1000產品采用環境友好型的紫外線，這是最安全的污水消毒方法，不會產生消毒副產物，而且不會涉及到氯這樣的危險化學品的運輸，儲存或處理等問題。

工程和安裝成本減少：

JYM1000可以與現有管道法蘭連接，這樣可以將工程和安裝成本降至最低。系統可以快速方便的安裝在現有的渠道或氯接觸池中，且設備出廠前完成所有的組裝、線路連接和測試，從而大大減少現場的安裝時間和成本。

為簡單和可靠做出的設計：采用的設備操作簡便，將人工介入程度降至最低。

操作友好型的設備維護：

巨源無極燈管質保時間為120000小時（即150個月）超長的使用壽命，無頻繁更換燈管的麻煩。每個系統都是獨立供電，并可單獨進行維護，不需要中斷水流或停機。

可室外安裝：所有JYM1000系統的元器件都可在室外安裝運行，無需房屋建筑，掩體和為鎮流器制冷的空調的投資。

可以滿足不斷變化的法規的需求：JYM1000紫外系統對受納水體沒有任何負面影響，這樣就使其成為成為滿足日益嚴格的法規的戰略和長期的選擇。

消毒性能保證和全面的質保：JYM1000系統包括設備全壽命周期內的消毒性能保證，行業內最好的燈管質保?？梢院臀覀兟?lián)系咨詢巨源的質保政策。

超長壽命的無極燈管：

1. 無極紫外燈管不存在電極老化問題, 燈管的壽命可長達十幾年；

2. 微波驅動下的無極燈管具有功率密度高、單位面積內紫外輸出功率大等特點，是目前公認的發光效率最高的燈管類型；

發光譜線主要為253.7nm，是傳統紫外燈效率的20多倍；同時還發出譜線為185nm的紫外光，可產生臭氧，可對水體進行進一步的消毒處理；

4. 可瞬時啟動和再啟動, 光輸出穩定；

6. 燈的更換維修次數少, 適用于維修困難的場合；

7. 選用高透光率、高純度的石英管，保證紫外線透過率在90%以上

小型便利的安裝、操作方式：

由于無極紫外燈管的功率密度遠高于傳統紫外燈管，因此該設備在處理相同當量的污水時，具有占地面積小、處理時間短、安裝調試工程量小、能適應多種場合的處理需要等特點

選用優質不銹鋼SU304或316L（可選）作反應器、反應器內外壁進行特殊拋光處理，具有耐腐蝕、不易變形等特點

JYM1000是一套定型的設備，可以與管道或渠道進行快速經濟的安裝

外置配電箱，可置于單獨的空間和腔體分離操作

配有紫外線強度監測系統，便于監測石英管的結構情況和紫外燈使用強度變化（用戶自選件）

配有工作指示燈、工作累時計、報警系統（用戶自選件）

系統可以串聯安裝，用以處理更高的流量或提供設備冗余

自動清洗設計：高效的全自動機械清洗裝置，在設備運行的同時開始運行清洗程序，做到實時清洗，且清洗時不影響設備正常運行因而無需人員操作。利用改變水流運行方向的模式，帶動清洗裝置來回運行工作，具有實時、方便、快捷、環保、節能、無死角、無噪音污染等特點。

【使用說明】

【產品照片】

【視頻資料】

【同系產品】

【規格參數】見產品參數表

【Product name】 microwave non polar ultraviolet UV photolysis wastewater purifier
[product model] JYM1000
[key] safe sewage disinfection, environmentally friendly ultraviolet light, automatic cleaning of sewage treatment equipment, sewage treatment plant to remove bacteria, water reuse disinfection
Waste water purifier
[technical principle]
Microwave can make the polar substances in the cell interfere with and obstruct the oscillating of the high frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or denaturation, resulting in mutation or death.
Ultraviolet: 253.7nm ultraviolet is the best disinfection spectral line recognized by photochemical reaction and deactivation of DNA by irradiating the microorganism's ultraviolet.
Ozone (O3): the ozone generated by the microwave excited radiation and the oxygen in the air has strong oxidation effect, effectively killing bacteria. The dispersion of ozone can make up for the ultraviolet rays propagating along the straight line and sterilizing the dead angle.
[product characteristics]
1. light pipe life can be longer than ten years, the spectrum line 253.7nm, is more than 20 times the efficiency of the traditional ultraviolet lamp.
The 5. lamp tube can be realized in real time and automatically, without manual maintenance.
The 7. equipment has small area, convenient installation and random environment.
The 8. processing efficiency is high, and the processing quantity of the existing UV lamp equipment can be realized several times.
9. the interface is convenient and the operation is friendly.
Wastewater treatment and wastewater purification
[comprehensive introduction]
JYM1000 microwave electrodeless ultraviolet sewage treatment equipment, sewage disinfection safety, do not produce disinfection by-products, environmental friendly, lamp life of 12 years, the 253.7nm spectral line, 20 times more than ordinary UV lamp, lamp real-time, automatic cleaning, no maintenance, small occupied area, convenient installation, high processing efficiency.
Improved operator, community and environmental security:
JYM1000 products use environment-friendly ultraviolet. This is the safest method of sewage disinfection. It will not produce disinfection by-products, and will not involve transportation, storage or disposal of dangerous chemicals such as chlorine.
The cost of engineering and installation is reduced:
The JYM1000 can be connected to the existing pipe flanges so that the cost of engineering and installation can be minimized. The system can be installed in existing channels or chlorine contact tanks quickly and conveniently, and the equipment can complete all assembly, line connection and testing before leaving the factory, thus greatly reducing the installation time and cost of the field.
For simple and reliable design: the equipment used is easy to operate, and the degree of manual intervention is minimized.
Operation friendly equipment maintenance:
The long life of 120000 hours (150 months) and the trouble of changing the lamp tube frequently. Each system is independent of power supply and can be maintained alone without interrupting water or stopping.
Outdoor installation: all components of the JYM1000 system can be installed outdoors, without building buildings, bunkers and air conditioning for ballasts.
It can meet the needs of changing laws and regulations: JYM1000 ultraviolet system has no negative impact on receiving water, which makes it become a strategy and long-term choice to meet increasingly stringent regulations.
Disinfection performance assurance and overall quality assurance: JYM1000 system includes the whole life cycle of the equipment to ensure the disinfection performance, the industry's best lamp quality assurance. We can contact us to consult the quality assurance policy of giant source.
Ultra long life - free lamps and tubes:
1. there is no problem of electrode aging in the non polar ultraviolet lamp, and the life span of the lamp can be over ten years.
The 2. microwave driven electrodeless lamp has the characteristics of high power density and large ultraviolet output per unit area. It is currently recognized as the most efficient lamp type.
The spectral line is mainly 253.7nm, which is 20 times the efficiency of the traditional ultraviolet lamp. At the same time, it also produces ultraviolet light with 185nm spectral line, which can generate ozone, which can further disinfect the water body.
4. can start and restart instantaneously, and the output of light is stable.
The number of replacement and maintenance of the 6. lamps is less, which is suitable for the situation of difficult maintenance.
7. the quartz tube with high transmittance and high purity ensures the ultraviolet transmittance of over 90%
Small and convenient installation and operation mode:
Because the power density of the electrodeless ultraviolet lamp is much higher than that of the traditional ultraviolet lamp, so the device has the advantages of small footprint, short processing time, small installation and commissioning capacity and suitable for various occasions when dealing with the same equivalent sewage.
The high quality stainless steel SU304 or 316L (optional) is used as the reactor and the inner and outer wall of the reactor to carry out special polishing treatment. It has the characteristics of corrosion resistance, non deformation and so on.
JYM1000 is a set of fixed equipment that can be installed quickly and economically with pipes or channels.
External distribution box, which can be placed in separate space and cavity separation operation
With ultraviolet intensity monitoring system, it is easy to monitor the structure of quartz tube and the intensity change of UV lamp (user self selection).
Equipped with work indicator lamp, working time meter, alarm system (user self selection)
The system can be installed in series to deal with higher traffic or to provide equipment redundancy.
Automatic cleaning design: an efficient automatic mechanical cleaning device. When the equipment is running, it starts running the cleaning program to achieve real-time cleaning, and cleaning does not affect the normal operation of the device, so no need for personnel operation. By changing the running direction of water flow, we can drive the cleaning device to run back and forth, which is real-time, convenient, fast, environmental protection, energy saving, no dead angle, no noise pollution and so on.
[instructions]
[product photo]
[video data]
[homologous products]
See the product parameter table
